Building Technical Textiles

Products related to isolation, roofing systems and advertising media. Military and Disaster Tents Fabric.

Building Technical Textiles
ArFlexMembrane
900 gr/m2, 28% Polyester 2% Elastane 70% Polyurethane , Flexible Outdoor Membrane
ArFlexMembrane

It's used for lightweight outdoor roof systems.


The base material is polyester and elastane mixture knit fabric which is coated by polyurethane layer.

It's three time more flexible than other tarpaulins and do not contain any pvc.



Technical Parameters

Fiber 28% Polyester (PES) 2% Elastane (EL) %70 Polyurethane (PU) EN ISO 2076
Yarn 100*2 Denier EN ISO 2060
Weight 900 ±10 gr/m2 EN ISO 3081
Width 1800 ±20 mm EN ISO 3932
Bursting strength > 2000 kPa (kN/m2) EN ISO 13938-1
Dimensional Change -5% < Length < +5% ; -5% < Width < +5% EN ISO 5077
Rubbing Fastness 4-5 EN ISO 105 X12
Perspiration Fastness 4-5 EN ISO 105 E04
Washing Fastness 4-5 EN ISO 105 C06
Dry Cleaning Fastness 4-5 EN ISO 105 D01
Hypochlorite Fastness 4-5 EN ISO 105 N01
Hot Press Fastness 4-5 EN ISO 105 X11
Light Fastness 7 EN ISO 105 B02
pH 6.2 EN ISO 3071
Azo Test No Azo Colorants. EN ISO 14362-1
Application Outdoor, non permanent structures
Quality Management Done ISO 9001
Flame Retardant Done EN 14116
UV Protection Done EN 13758
Antibacterial Yes AATCC 147, ASTM E 2149


Technical Documents



Certificates




Applications

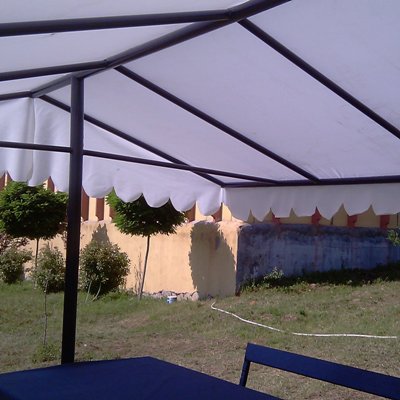

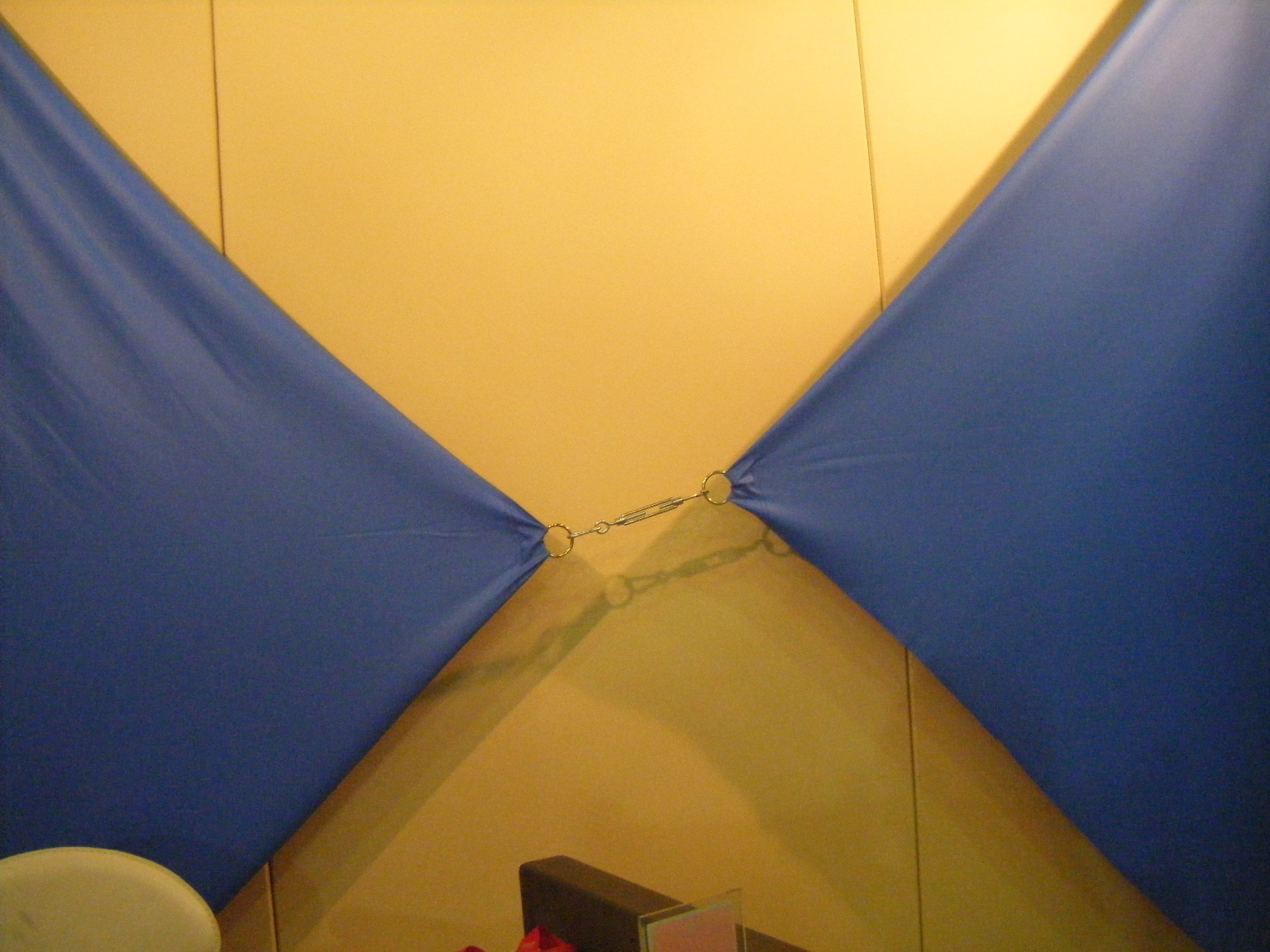

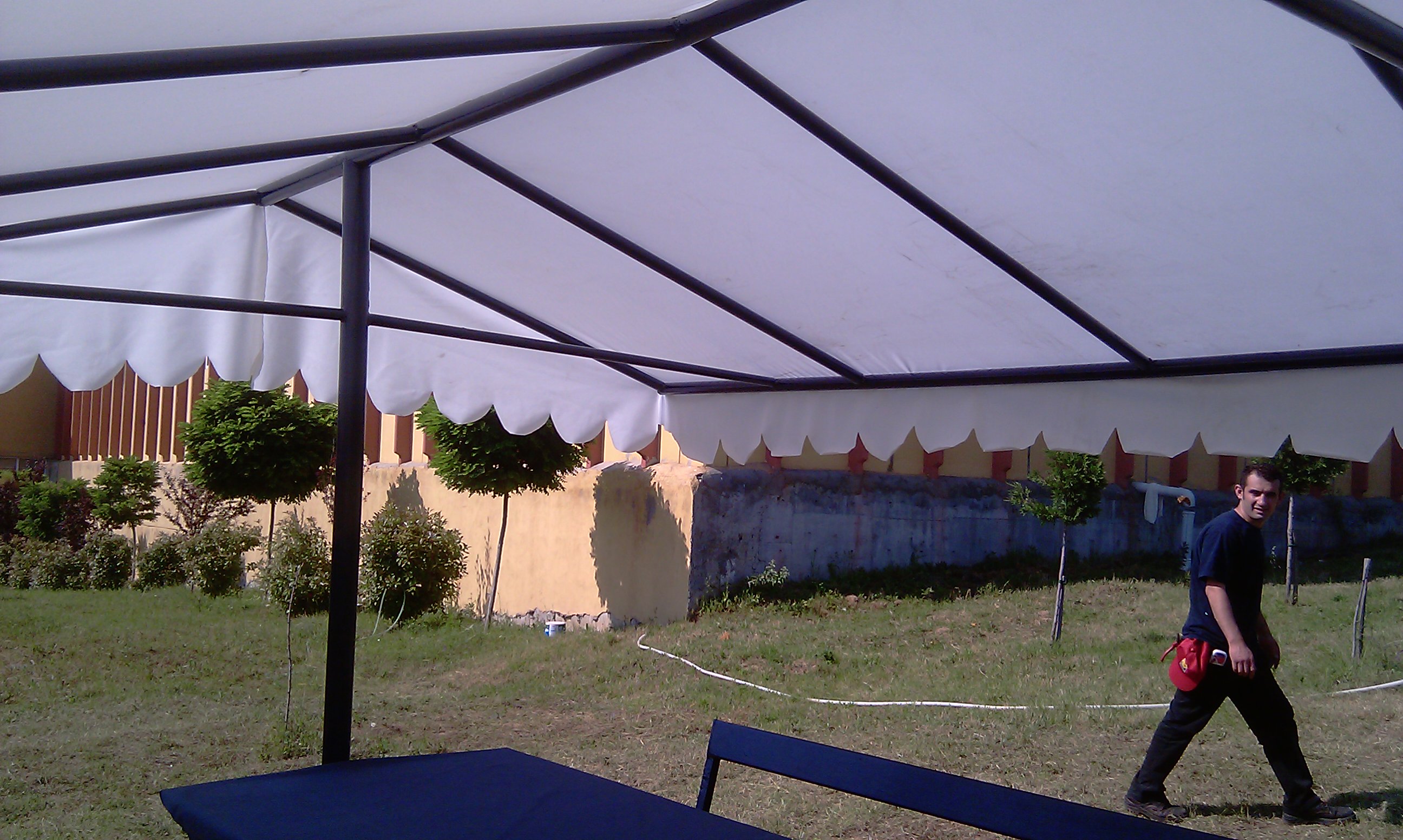

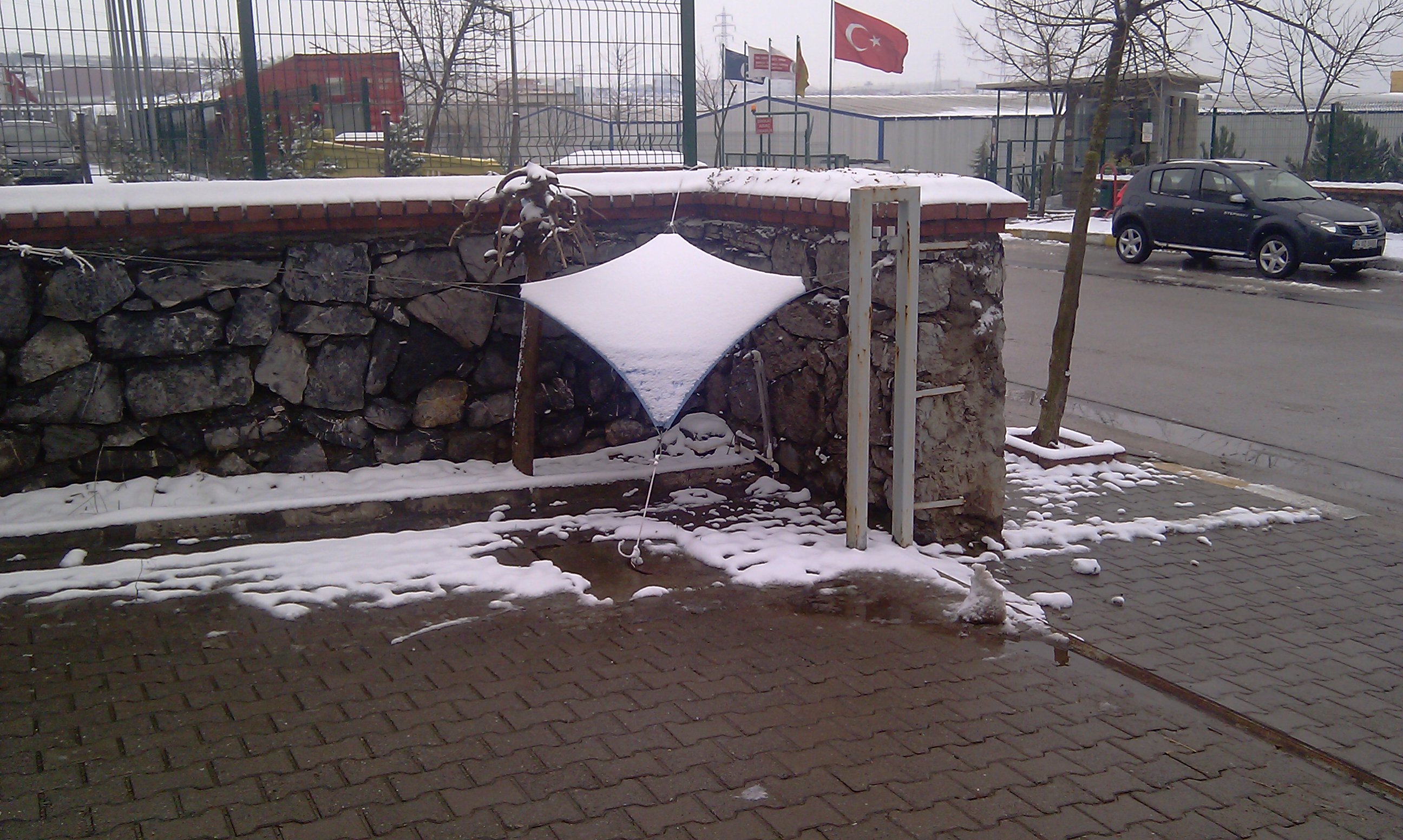

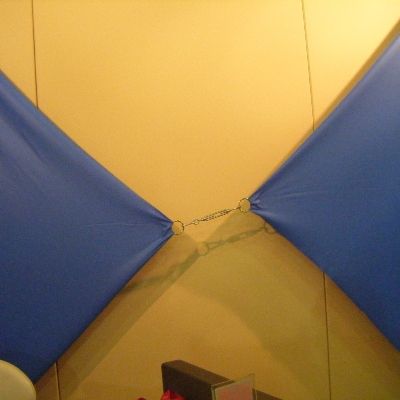

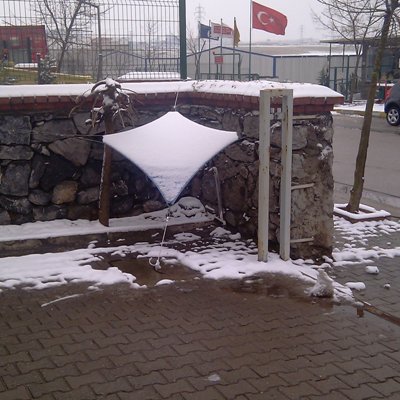

Indoor Membrane Application 1 Indoor Membrane Application 4 Indoor Membrane Application 8


Functions

Oeko Teks Standard 100
Safe Textile

Recyclable Less Steel Usage Ecologic Stretchable Flame Retardant




Care Instructions

No Wash No Chlorine Based Bleaching Drip Dry Maximum 150'C Warm Iron No Dry Cleaning


Colors and Article Numbers

  Winter PT11938 - STANDART - ArFlexMembrane-2076
  Cognac PP11935 - STANDART - ArFlexMembrane-2068
  Rep PP31063 - STANDART - ArFlexMembrane-1888
  Fate PP20794 - STANDART - ArFlexMembrane-1980
  Eclipse PP31062 - STANDART - ArFlexMembrane-2028
  Freedom PP52790 - STANDART - ArFlexMembrane-1887
  Espresso PP70918 - STANDART - ArFlexMembrane-1879
