54% Viscose Fr 20% Polyamide 6.6 20% Wool 5% p-aramid 1% Carbon, inherent flame retardant antistatic satin fabric for molten metal splash protection .

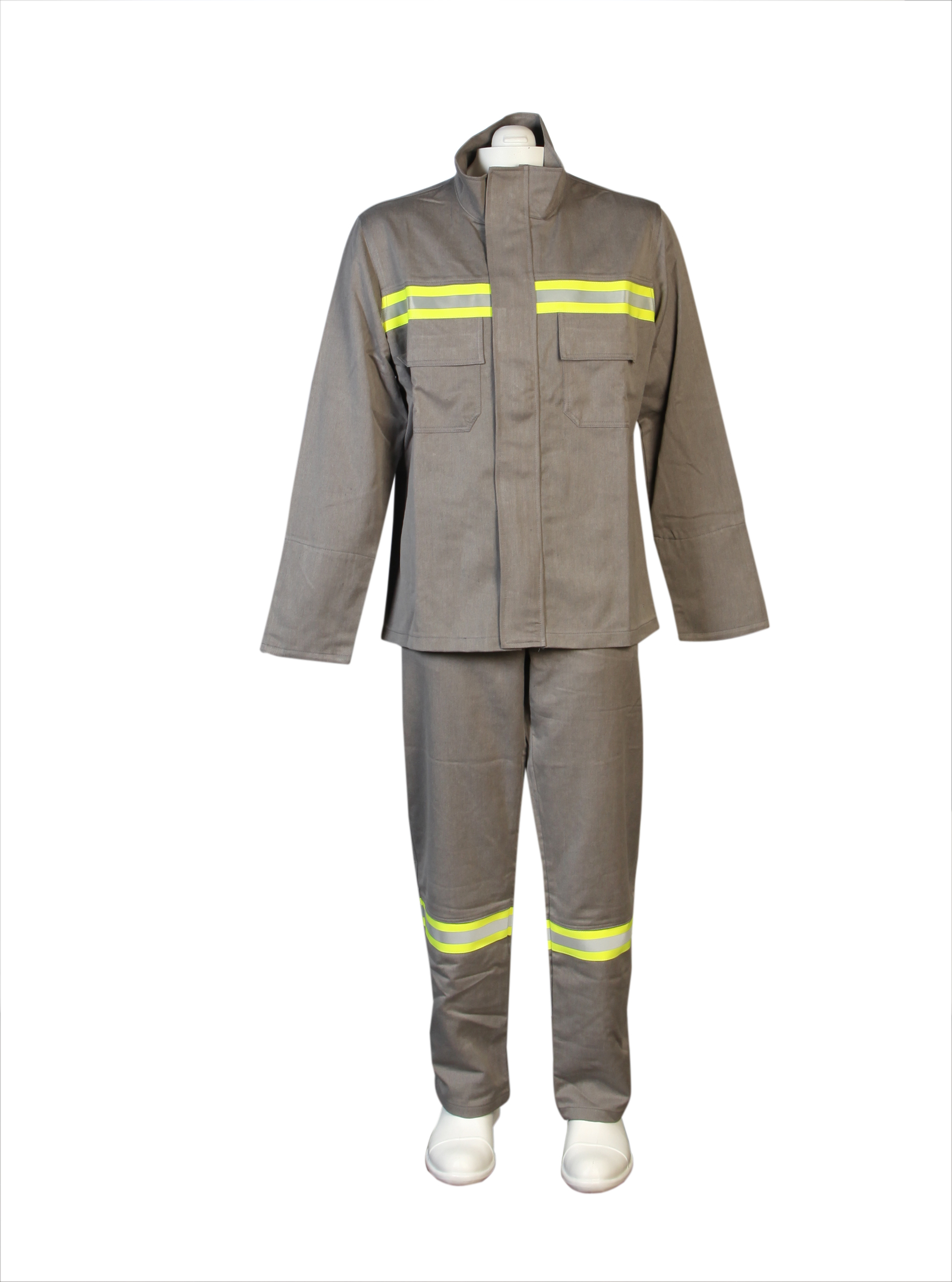

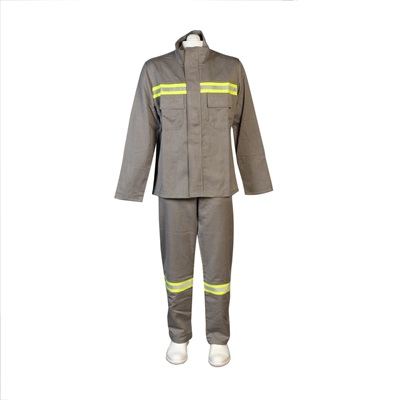

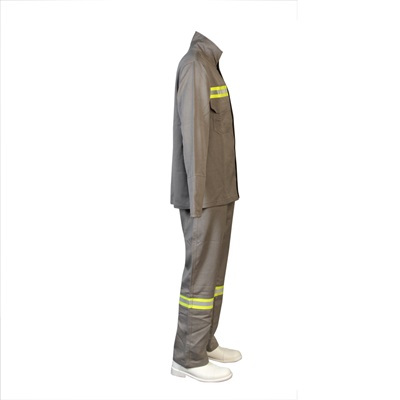

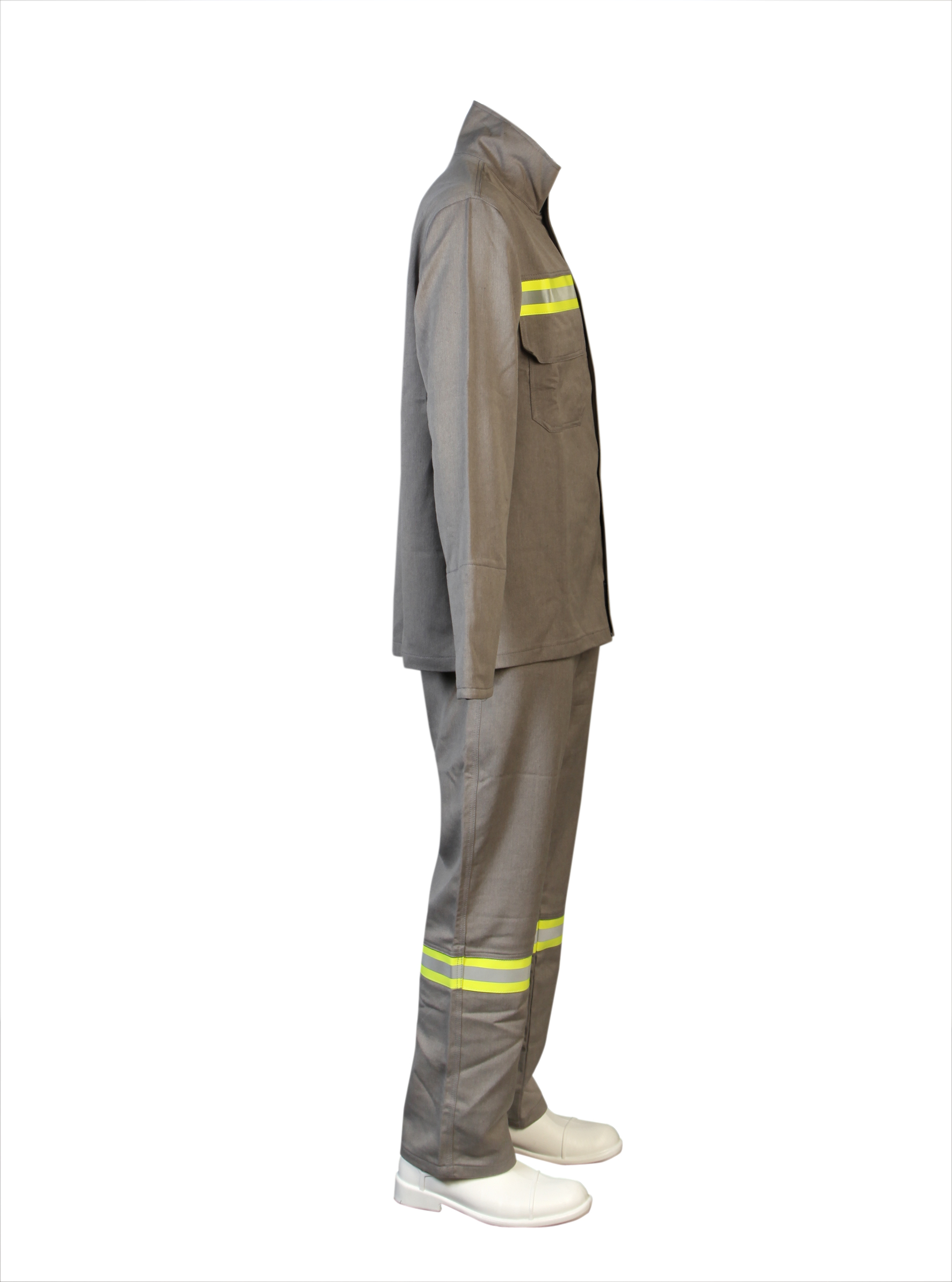

ArD3E3 fabric is used to make jacket and trousers for hot metal, steel and aluminum industries.

It is resistant to hot metal splash around 1500'C degrees.

ArD3E3 are inherent flame retardant with EN 11612 D3 E3 level certification.

Suitable for antistatic application, certified for EN ISO 1149-5.

It provides arc flash protection with EN 61482 class 1 (4 kA) certification.

Technical Parameters

Fiber	54% Viscose Fr(CV FR) 20% Polyamide 6.6(PA6.6) 20% Wool(WO) 5% p-aramid(p-AR) 1% Carbon (CF)	EN ISO 2076
Yarn	Warp:24/2 Ne; Weft:24/2 Ne	EN ISO 2060
Weight	350 ±10 gr/m2	EN ISO 3081
Width	1600 ±20 mm	EN ISO 3932
Tensile Strength	Warp > 1500N ; Weft > 1000N	EN ISO 13934-1
Tear Strength	Warp > 50N ; Weft > 50N	EN ISO 13937-2
Dimensional Change	-3% < Length < +3% ; -3% < Width < +3%	EN ISO 5077
Rubbing Fastness	4-5	EN ISO 105 X12
Perspiration Fastness	4-5	EN ISO 105 E04
Washing Fastness	4-5	EN ISO 105 C06
Dry Cleaning Fastness	4-5	EN ISO 105 D01
Hypochlorite Fastness	4-5	EN ISO 105 N01
Peroxide Fastness	4-5	EN ISO 105 N02
Hot Press Fastness	4-5	EN ISO 105 X11
Light Fastness	4-5	EN ISO 105 B02
Perspiration Light Fast.	4-5	EN ISO 105 B07
pH	4.0 - 7.5	EN ISO 3071
Azo Test	No Azo Colorants.	EN ISO 14362-1
Application	Hot metal protective clothing
Quality Management	Done	ISO 9001
Welding Protection	Yes	EN ISO 11611
Flame and Heat Protection	D3 E3	EN ISO 11612
Antistatic	Yes	EN ISO 1149-5
Arc Protection	Class 1 (4kA)	EN ISO 61482-1-2
ATPV	> 10 cal/cm2	EN ISO 61482-1-1
Chemical Resistant	Yes	EN ISO 13034

Technical Documents
>> ArD3E3 Moda Pro Data Sheet

Certificates

Applications

Functions

Care Instructions

Colors and Article Numbers

	Red	PN-35538-09A	- STANDARD -	ArD3E3 - 5746
	Dark Blue	PN-5011347-09A	- STANDARD -	ArD3E3 - 5745
	Black	PN-97900-09A	- STANDARD -	ArD3E3 - 5744
	Grey	PN-97899-09A	- STANDARD -	ArD3E3 - 5743
	Navy	PN-5011740-09A	- STANDARD -	ArD3E3 - 5742
