Protection Technical Textiles
go to previous Aramid D2 260 go to next
260 gr/m2, 93% m-Aramid 5% p-Aramid 2% Carbon, Inherent Flame Retardant, Antistatic, 3/1S Twill Fabric
Aramid D2 260

Aramid twill fabric

consisting of 260 gr/m'2, 93% m-Aramid, 5% p-Aramid, 2% Carbon.

Inherent flame retardant fabric

for wildland firefighters, oil and gas industry workers.

Inherent flame retardant fabric with EN ISO 11612 and EN ISO 11611 certification.

Antistatic (EN 1149-3)


Protection against thermal hazards of electrical arc. (EN 61482-1-2)


Resistant to most industrial chemicals. (EN ISO 13034)



Technical Parameters

Fiber 93% m-Aramid (m-AR) 5% p-Aramid (p-AR) 2% Carbon(CF) EN ISO 2076
Yarn Warp:30/2Ne; Weft:30/2Ne EN ISO 2060
Weight 260 ±5 gr/m2 EN ISO 3081
Width 1600 ±20 mm EN ISO 3932
Tensile Strength Warp > 1500N; Weft > 1000N EN ISO 13934-1
Tear Strength Warp>70N ; Weft>60N EN ISO 13937-2
Dimensional Change -3% < Length < +3% ; -3% < Width < +3% EN ISO 5077
Rubbing Fastness 4-5 EN ISO 105 X12
Perspiration Fastness 4-5 EN ISO 105 E04
Washing Fastness 4-5 EN ISO 105 C06
Dry Cleaning Fastness 4-5 EN ISO 105 D01
Hypochlorite Fastness 4-5 EN ISO 105 N01
Peroxide Fastness 4-5 EN ISO 105 N02
Hot Press Fastness 4-5 EN ISO 105 X11
Light Fastness 4-5 EN ISO 105 B02
Perspiration Light Fast. 4-5 EN ISO 105 B07
pH 6.0 EN ISO 3071
Azo Test No Azo Colorants. EN ISO 14362-1
Application Firefighters Costumes
Quality Management Done ISO 9001
Flame and Heat Protection Yes EN ISO 11612
Welding Protection Yes EN ISO 11611
Antistatic Yes EN ISO 1149-5
Arc Protection Class 1 (4kA) EN ISO 61482-1-2
ATPV > 12 cal/cm2 EN ISO 61482-1-1
Chemical Resistant Yes EN ISO 13034
Forest Firefighters Yes EN ISO 15614


Technical Documents

>> Aramid D2 260 Data Sheet

Certificates

EN ISO 11612

EN ISO 11612 Test Report

EN ISO 1149-5 (1149-3 Method 2)

EN ISO 1149-5 (1149-3 Method 2) Test Report

EN 61482-1-1 ATPV

EN ISO 105 B02

EN ISO 105 C06

EN ISO 105 E04

EN ISO 105 N01

EN ISO 105 N02

EN ISO 105 X11

EN ISO 105 X12




Applications

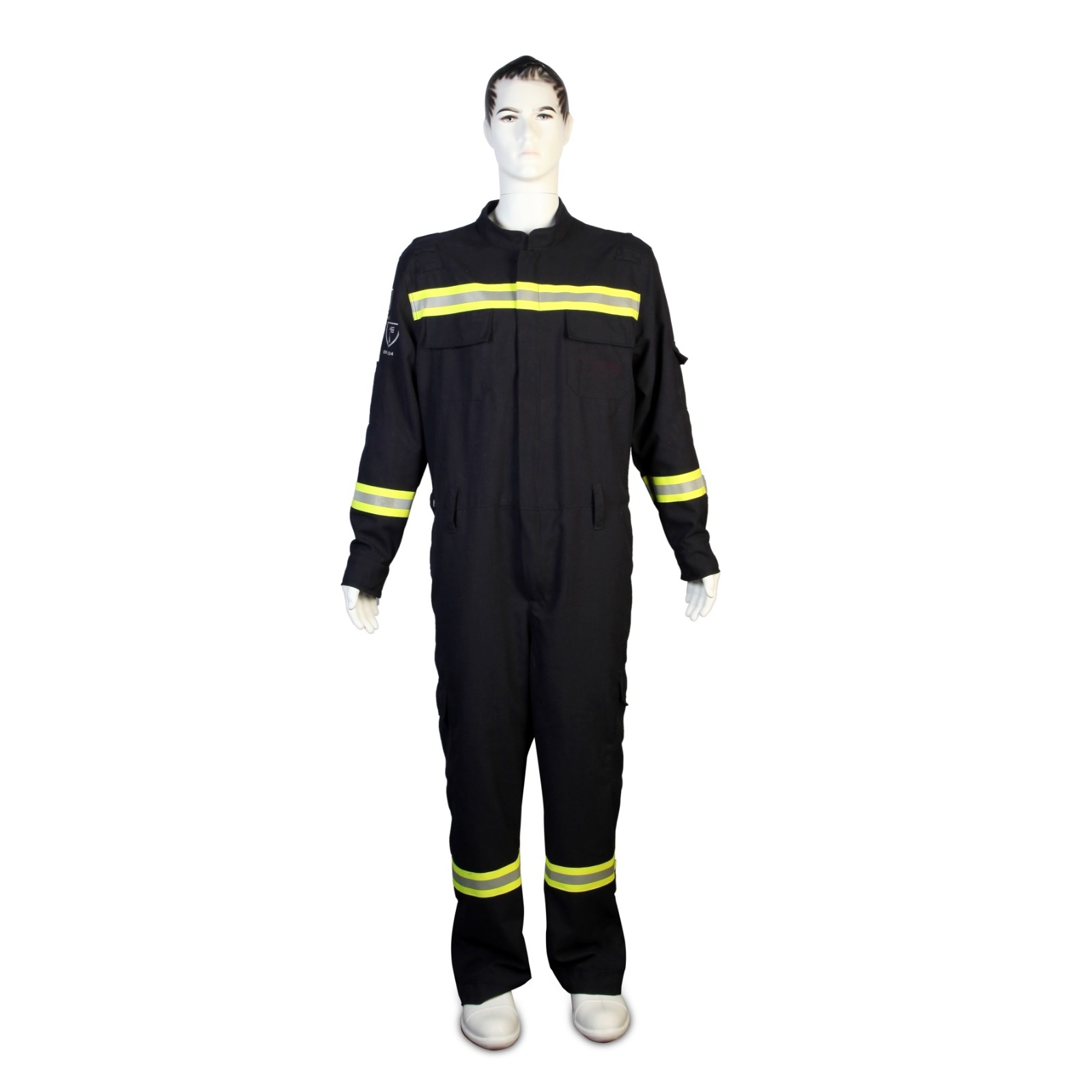

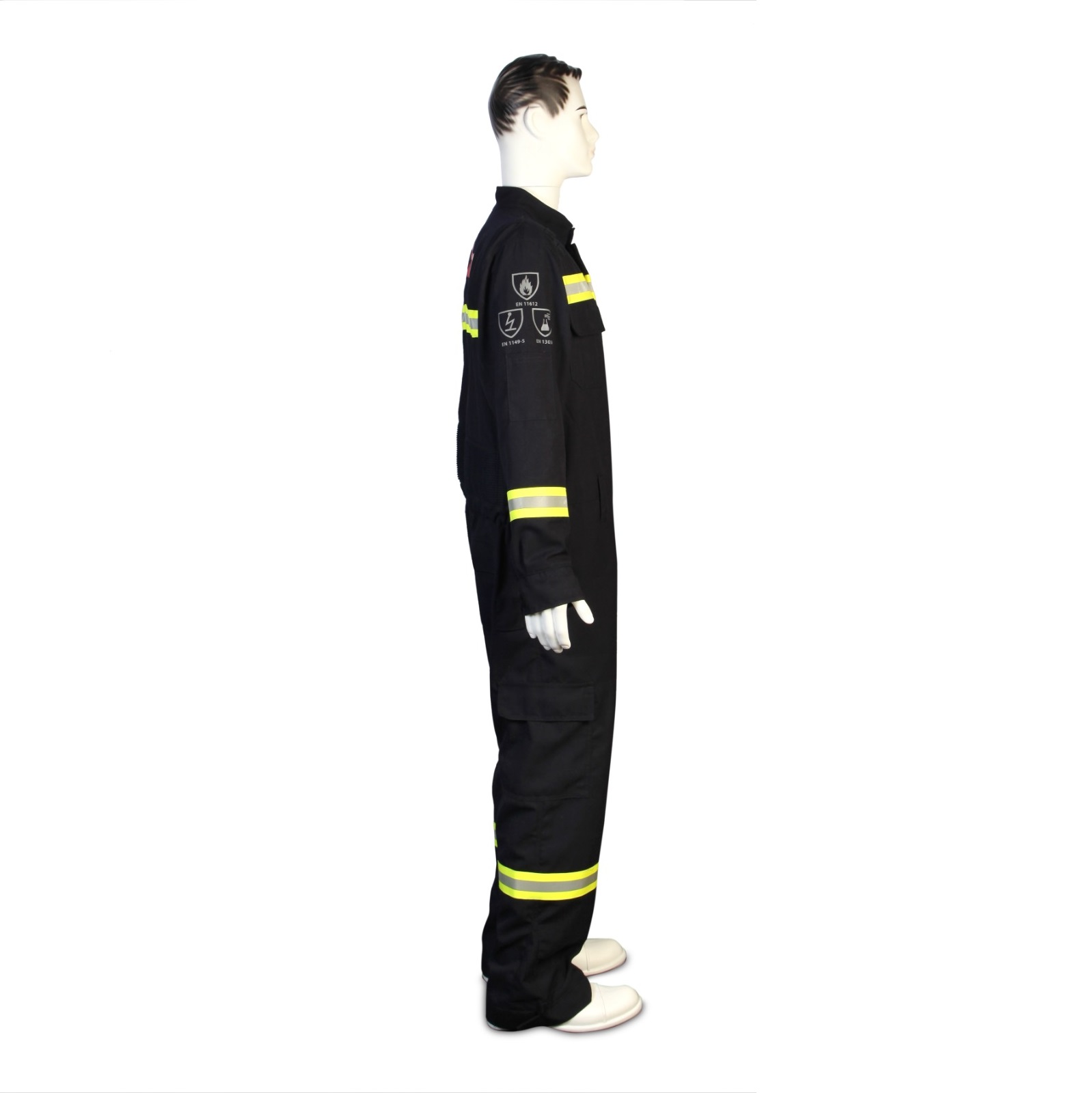

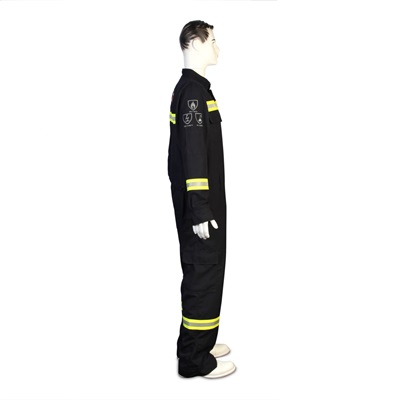

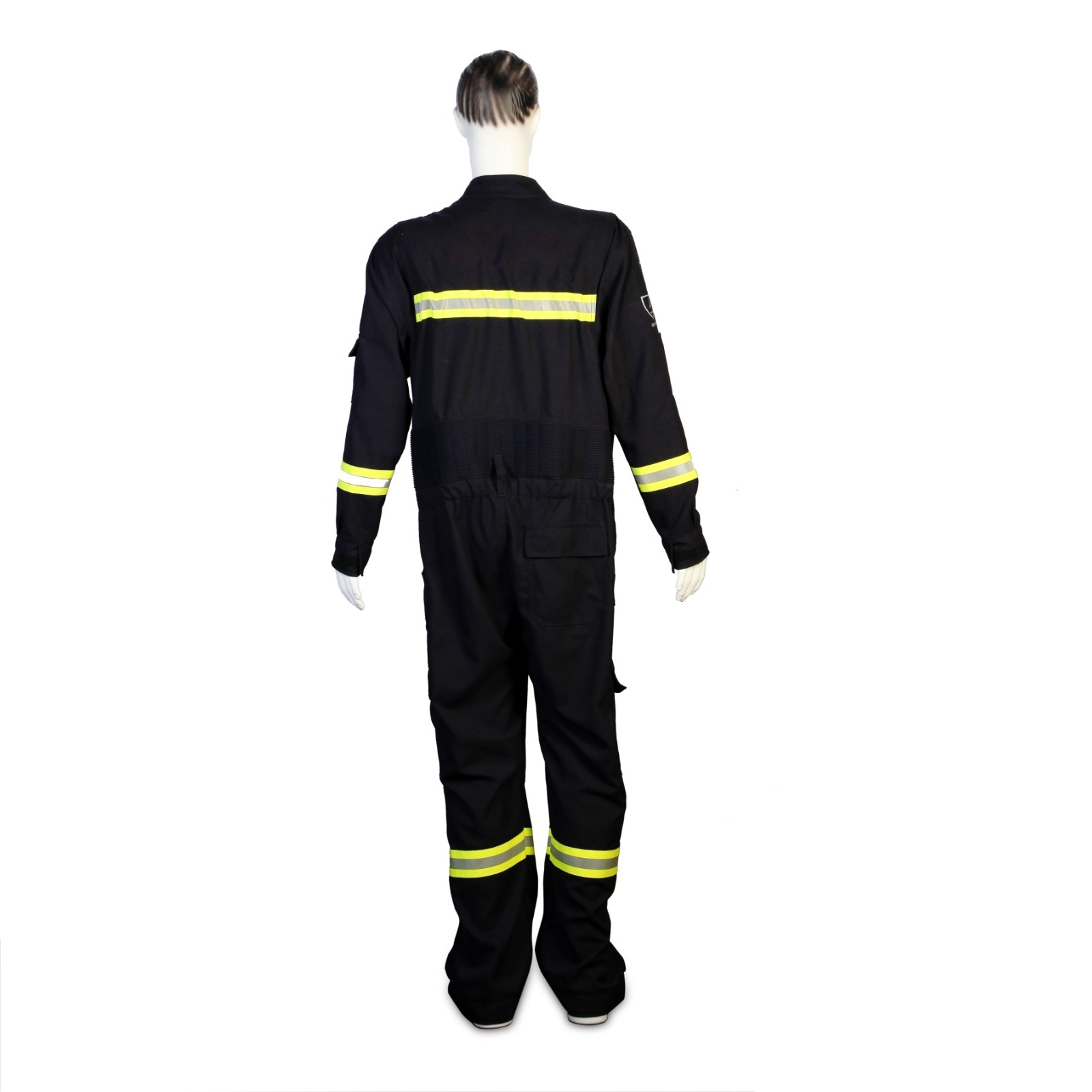

Aramid Coveroll for Oil and Gas Industry


Functions

Oeko Tex Standard 100

EN 11612 EN 11611 EN  1149 EN 61482 EN 13034 EN 15614




Care Instructions

60'C Machine Wash No Chlorine Based Bleaching Can Be Tumble Dried On Low Heat Setting Maximum 150'C Warm Iron Suitable for Dry Cleaning


Colors and Article Numbers

Orange PP-24644 - STANDARD - Aramid D2 260-4840
Dark Green PP-65457 - STANDARD - Aramid D2 260-4841
Red PP-33921 - STANDARD - Aramid D2 260-4842
Dark Blue PP-58627 - STANDARD - Aramid D2 260-4843
Black PP-96036 - STANDARD - Aramid D2 260-4844
Navy PP-58628 - STANDARD - Aramid D2 260-4845
Grey PP-96034 - STANDARD - Aramid D2 260-4846
Dark Navy PP-58625 - STANDARD - Aramid D2 260-4847
Khaki PP-67374-1 - STANDARD - Aramid D2 260-5751
