Protection Technical Textiles


High visible, waterproof, flame retardant, antistatic, chemical resistant workwear fabrics.

Protection Technical Textiles
Aramid D2 260 El
260 gr/m2, 88% m-Aramid 5% p-Aramid 2% Carbon 5% Elasthane, Inherent Flame Retardant, Elasthane, Antistatic, 3/1S Twill Fabric
Aramid D2 260 El

Aramid elasthane twill fabric

consisting of 260 gr/m'2, 88% m-Aramid 5% p-Aramid 2% Carbon 5% Elasthane.

Inherent flame retardant fabric

for military application and firefighters with ultra comfort.

Inherent flame retardant fabric with EN ISO 11612 certification.

Suitable for antistatic applications. (EN 1149-3)


Protection against thermal hazards of electrical arc. (EN 61482-1-2)


Resistant to most industrial chemicals. (EN ISO 13034)



Technical Parameters

Fiber 88% m-Aramid (m-AR) 5% p-Aramid (p-AR) 2% Carbon(CF) 5% Elasthane (El) EN ISO 2076
Yarn Warp:30/2Ne; Weft:30/2Ne EN ISO 2060
Weight 260 ±5 gr/m2 EN ISO 3081
Width 1400 ±20 mm EN ISO 3932
Tensile Strength Warp > 1500N; Weft > 1000N EN ISO 13934-1
Tear Strength Warp>70N ; Weft>60N EN ISO 13937-2
Dimensional Change -3% < Length < +3% ; -3% < Width < +3% EN ISO 5077
Rubbing Fastness 4-5 EN ISO 105 X12
Perspiration Fastness 4-5 EN ISO 105 E04
Washing Fastness 4-5 EN ISO 105 C06
Dry Cleaning Fastness 4-5 EN ISO 105 D01
Hypochlorite Fastness 4-5 EN ISO 105 N01
Peroxide Fastness 4-5 EN ISO 105 N02
Hot Press Fastness 4-5 EN ISO 105 X11
Light Fastness 4-5 EN ISO 105 B02
Perspiration Light Fast. 4-5 EN ISO 105 B07
pH 4.0 - 7.5 EN ISO 3071
Azo Test No Azo Colorants. EN ISO 14362-1
Application Military Applications
Quality Management Done ISO 9001
Flame and Heat Protection Yes EN ISO 11612
Antistatic Yes EN ISO 1149-5
Arc Protection Class 1 (4kA) EN ISO 61482-1-2
ATPV > 12 cal/cm2 EN ISO 61482-1-1
Chemical Resistant Yes EN ISO 13034


Technical Documents

>> Aramid D2 260 El Data Sheet

Certificates

EN 61482-1-1 ATPV

EN 61482-1-1 ATPV in Short




Applications

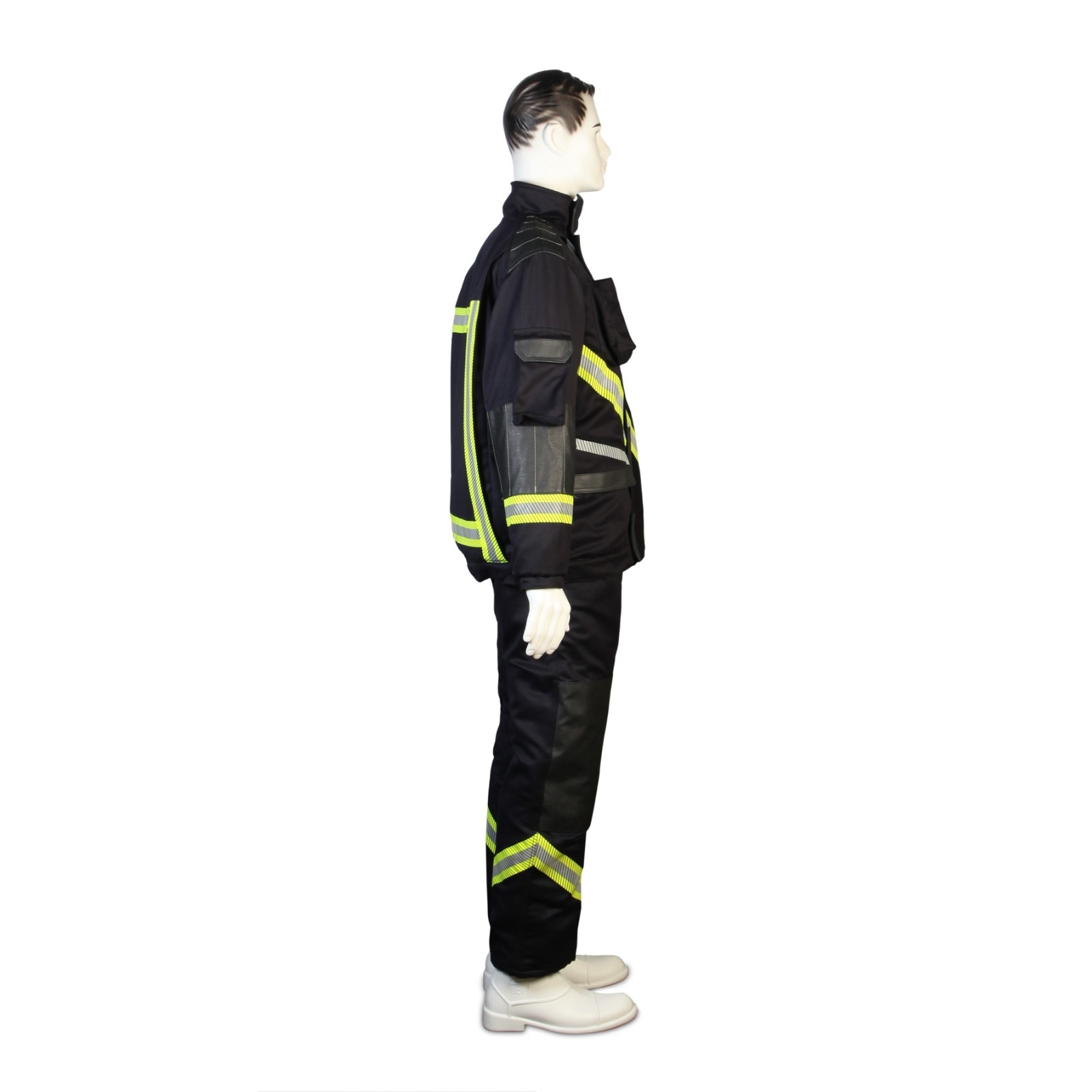

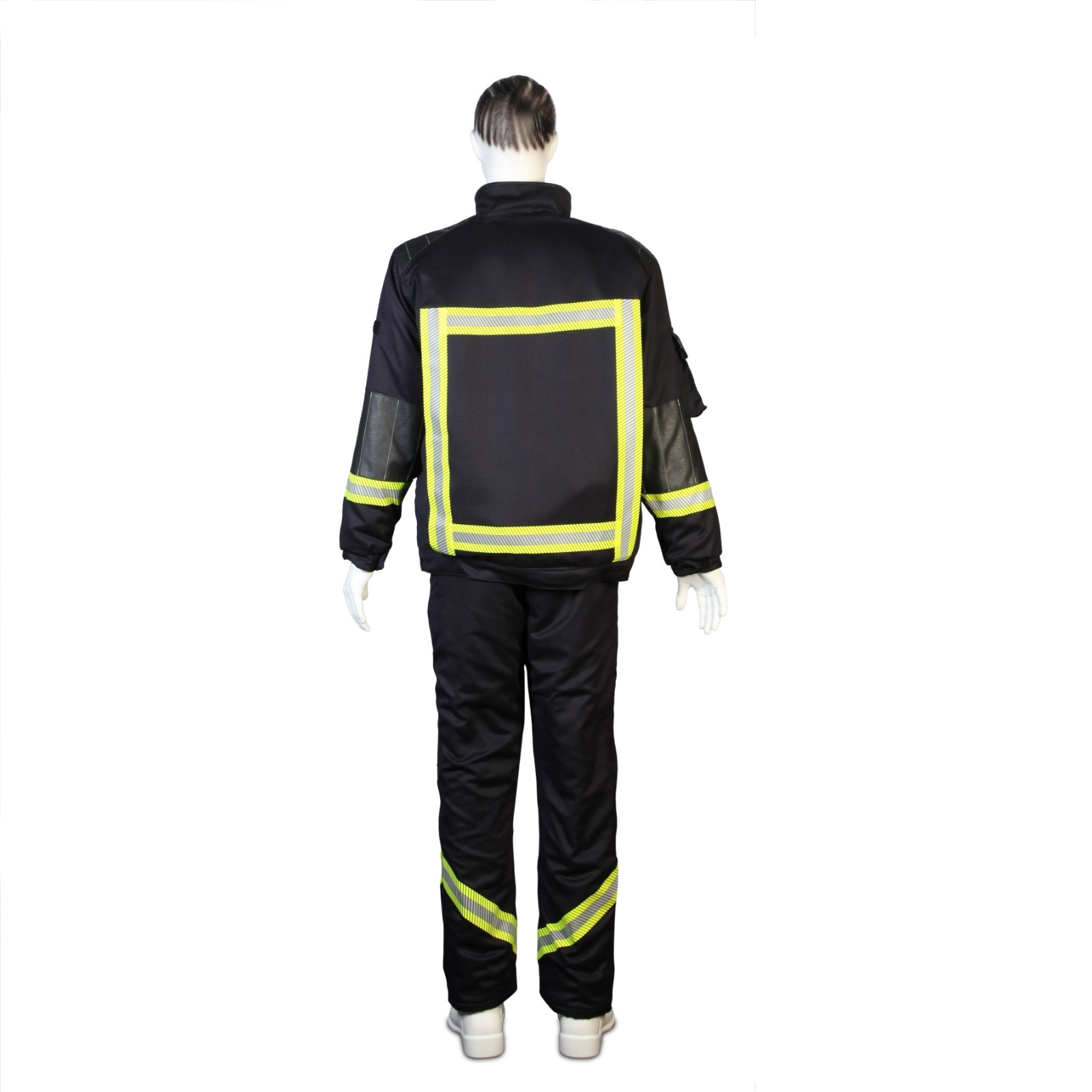

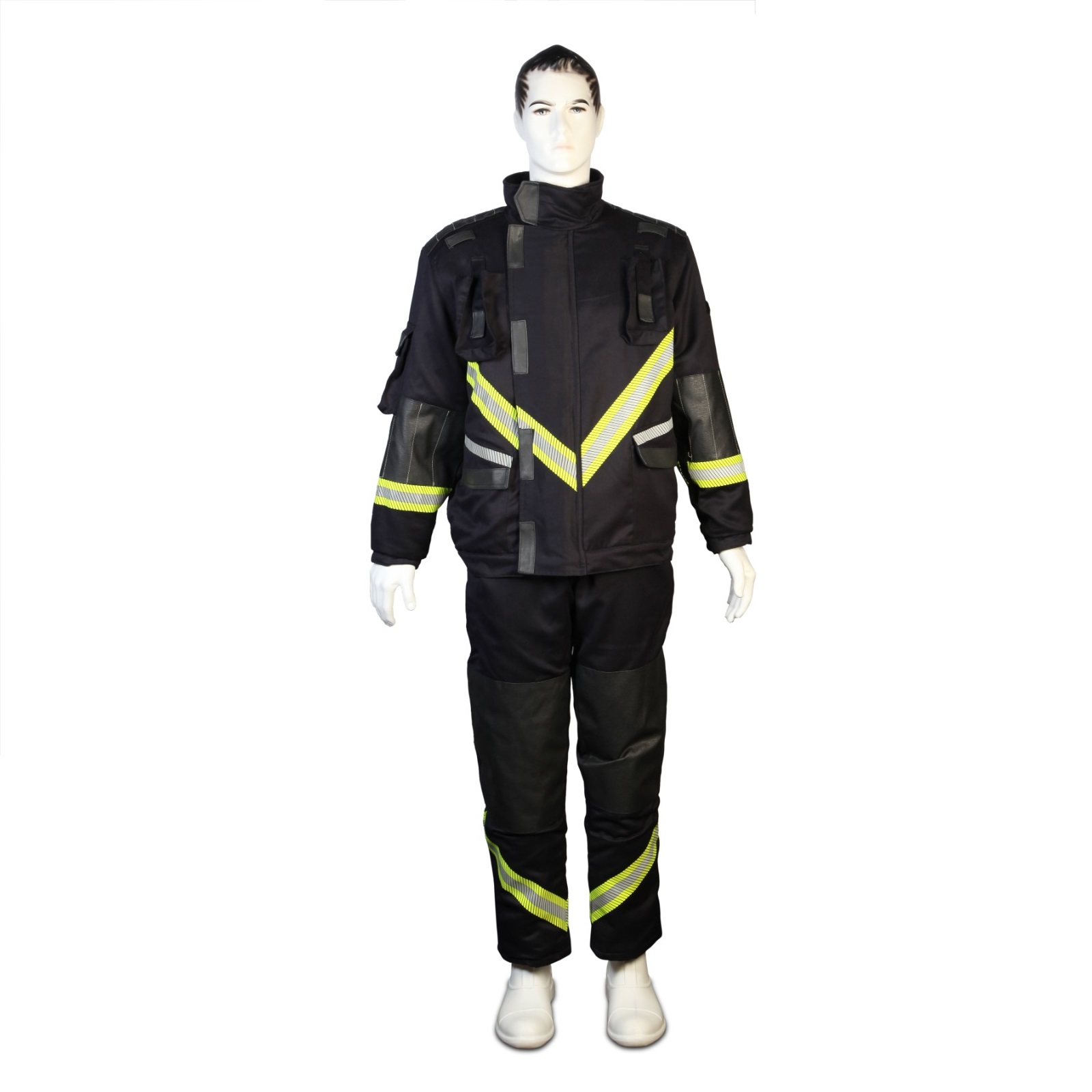

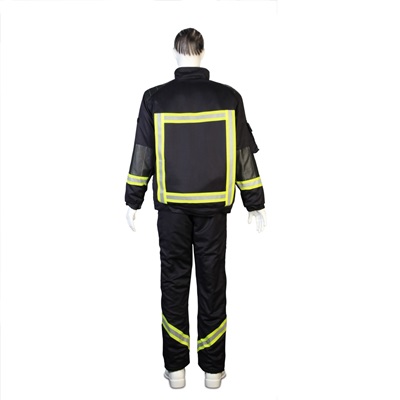

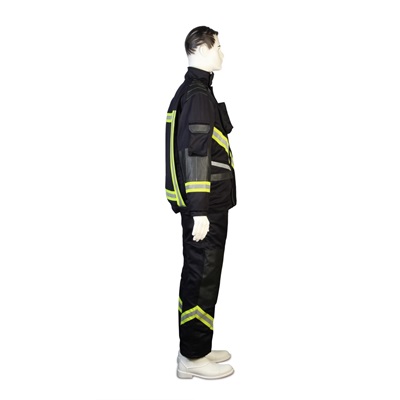

Cordura(R) Reinforced Aramid Firefighter Turnout Gear Cordura(R) Reinforced Aramid Firefighter Turnout Gear Cordura(R) Reinforced Aramid Firefighter Turnout Gear


Functions

Oeko Tex Standard 100

EN 11612 EN  1149 EN 61482 EN 13034




Care Instructions

60'C Machine Wash No Chlorine Based Bleaching Can Be Tumble Dried On Low Heat Setting Maximum 150'C Warm Iron Suitable for Dry Cleaning


Colors and Article Numbers

Navy PP-58628 - STANDARD - Aramid D2 260 El-5883
